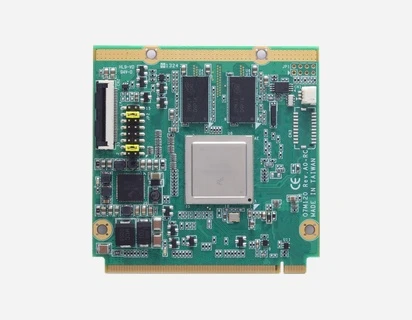

Q7M120
Qseven v2.0 SoM with iMX6 Quad/DualLite 800 MHz (Industrial) SoC, 1GB RAM, 4GB eMMC, Gigabit LAN, Audio and CAN
Features
- Qseven v2.0 form factor
- Freescale i.MX6 Quad/DualLite/Solo ARM Cortex-A9 processor
- 800 MHz / 1 GHz processor speeds
- Industrial-grade SoC
- 1GB onboard DDR3-1600 memory
- 4GB eMMC flash storage
- SDIO interface
- SATA interface (Quad cores CPU)
- Gigabit Ethernet (10/100/1000 Mbps)
- Dual CAN 2.0B interfaces
- Multiple display outputs (TTL, LVDS, HDMI 1080P)
- Audio input/output (Mic-in/Headphone)
- 4x COM ports with full handshaking
- 1x Console port
- USB 2.0 and OTG client support
- 3x I2C interfaces
- 1x SPI interface
- 8 button-detect GPIO
- 1x PCIe x1 expansion
- Linux kernel 3.0.35 support
- Android 4.3 support
- Wide operating temperature range (-40°C to +85°C)
- Compact 70x70mm form factor
Computer
ProcessorFreescale i.MX6 Series SoC with Quad/DualLite/Solo ARM Cortex-A9 CPU
Processor Speed800 MHz / 1 GHz (Solo only)
System MemoryOnboard DDR3-1600, up to 1GB
Operating SystemLinux kernel 3.0.35, Android 4.3
Storage
Primary StorageeMMC flash 4GB
Storage InterfacesSDIO interface, SATA interface (Quad cores CPU)
Display
Graphics Output1x 24-bit TTL signal, 2x 24-bit LVDS signal channel, 1x HDMI 1080P
I/o interfaces
Ethernet1x 10/100/1000 Mbps Ethernet
AudioMic-in/Headphone
Serial COM4x COM with TX/RX/RTS/CTS (one with 3.3V TTL level), 1x Console port
USB1x USB 2.0, 1x OTG client
I2C3x I2C Interface
SPI1x SPI
CAN2 ports as 2.0B protocol-compatible Controller Area Network (CAN) interfaces
GPIO8 button-detect
Expansion
PCIe1x PCIe x1
Power
Power Requirement+5V, 1A
Physical
Dimensions70x70mm
Board Thickness1.2mm±0.1mm
Environmental
Operating Temperature-40°C to +85°C (-40°F to +185°F)
Operating Humidity10%-95%, non-condensing
Other
RTCBattery on the Baseboard is required
Computer
ProcessorFreescale i.MX6 Series SoC with Quad/DualLite/Solo ARM Cortex-A9 CPU
Processor Speed800 MHz / 1 GHz (Solo only)
System MemoryOnboard DDR3-1600, up to 1GB
Operating SystemLinux kernel 3.0.35, Android 4.3
Storage
Primary StorageeMMC flash 4GB
Storage InterfacesSDIO interface, SATA interface (Quad cores CPU)
Display
Graphics Output1x 24-bit TTL signal, 2x 24-bit LVDS signal channel, 1x HDMI 1080P
I/o interfaces
Ethernet1x 10/100/1000 Mbps Ethernet
AudioMic-in/Headphone
Serial COM4x COM with TX/RX/RTS/CTS (one with 3.3V TTL level), 1x Console port
USB1x USB 2.0, 1x OTG client
I2C3x I2C Interface
SPI1x SPI
CAN2 ports as 2.0B protocol-compatible Controller Area Network (CAN) interfaces
GPIO8 button-detect
Expansion
PCIe1x PCIe x1
Power
Power Requirement+5V, 1A
Physical
Dimensions70x70mm
Board Thickness1.2mm±0.1mm
Environmental
Operating Temperature-40°C to +85°C (-40°F to +185°F)
Operating Humidity10%-95%, non-condensing
Other
RTCBattery on the Baseboard is required
