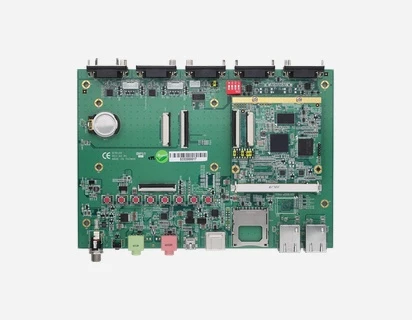

Q7M100-100-EVK
Qseven v1.2 SoM Evaluation Kit with i.MX287 454 MHz (Industrial) SoC, 128MB Memory, 4GB eMMC, Gigabit Ethernet, Audio, CAN and BSP
Features
- Ultra low power consumption ARM9
- High flexibility Qseven v1.2 compliant design
- 5 UART
- 2 CAN
- 24-bit TTL LCD
- 10/100 Mbps Ethernet
- Linux 2.6.35
Computer
ProcessorFreescale iMX-287 ARM926EJ-S CPU 454 MHz
System MemoryOnboard DDR2-667, up to 128MB
Operating SystemLinux kernel 2.6.35
Real-Time ClockBattery on the Baseboard is required
Display
Graphics1 x 24-bit TTL LCD
Touch4-wire touch screen controller
I/o interfaces
Ethernet2 x RJ-45 for 10/100 Mbps
Audio2 x Audio connector on the rear I/O with MIC-in and Headphone
COM4 x COM with TX/RX/RTS/CTS (one with 3.3V TTL level), 1 x Console Port
USB1 x OTG client, 1 x USB 2.0
I2C2 x I2C Interface
CAN2 x D-Sub 9-pin male connectors
Keypad8
Storage
Storage1 x SD/MMC socket, 1 x SATA connector
Power
Power Requirement+5V±5%, 5A
Physical
Size200x140mm
Board Thickness1.6mm±0.15mm
Environmental
Operation Humidity10%~95%, non-condensing
