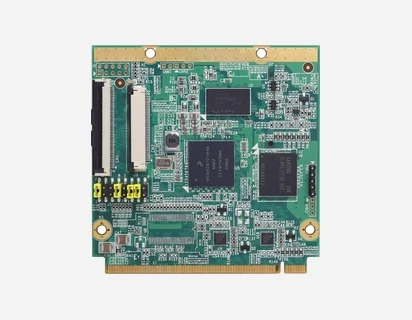

Q7M100
Qseven v1.2 SoM with i.MX287 454 MHz (Industrial) SoC, 128MB Memory, 4GB eMMC, Gigabit Ethernet, Audio and CAN
Features
- Ultra low power consumption ARM9
- High flexibility Qseven v1.2 compliant design
- 2 CANBus 2.0B compliant ports
- 24-bit TTL LCD
- Dual 10/100 Base-T Ethernet
- Audio
Computer
CPUFreescale iMX-28 Series SoC with 287 ARM926EJ-S CPU running @454MHz
System MemoryOnboard DDR2-667, up to 128MB
Operating SystemLinux kernel 2.6.35 compliant
Storage
SSDeMMC flash 4GB SDHC interface
Display
GraphicsLCD supported, up to 24-bit TTL RGB modes and 24-bit system mode
I/o interfaces
Ethernet2x10/100Mbps Ethernet
AudioMic-in/Line-out on carrier board
COM4xCOM ports - 3xTX/RX/RTS/CTS (2RS232 and 1RS-422/485), 1xTX/RX 3.3V TTL
USB1xOTG client, 1xhost
I2C2xI2C Interface
GPIO8 interfaces, up to 400kbps
SPIYes
CAN2 ports
Power
Power Requirement+5V±5%@800mA
Physical
Size70x70mm
Board Thickness1.2mm±0.1mm
Environmental
Operating Temperature-40℃~85℃
Operation Humidity10%~95%, non-condensing
Expansion
RTCBattery on the Carrier is required
