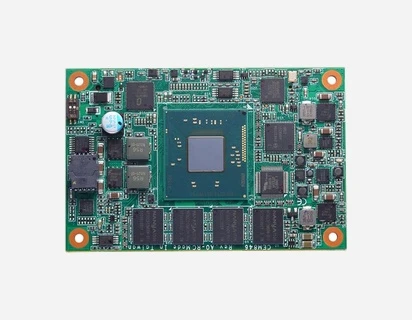

CEM846
COM Express Type 10 Mini Module with Intel® Atom™ E3800 Family
Features
- Onboard DDR3L up to 4GB
- Max. up to 4 lanes of PCIe
- 2 SATA-300
- 8 USB 2.0 and 1 USB 3.0
- Intel Atom E3800 Family processor options
- COM Express Type 10 Mini Module form factor
- Extended temperature support
- Watchdog timer with 255 levels
- Dual independent displays
- Wake-on-LAN and PXE Boot ROM support
- Hardware monitoring
- Digital I/O (4 channels IN & 4 channels OUT)
Computer
ProcessorIntel Atom E3845 1.91GHz quad core, Atom E3827 1.75GHz dual core, or Atom E3815 1.46GHz single core (onboard)
System MemoryOnboard extended temperature DDR3L, up to 4GB
ChipsetSoC integrated (E38xx SoC)
BIOSAMI uEFI (Legacy free)
Watchdog Timer255 levels, 1-255 sec. or min.
Display
Display EngineIntel HD Graphics (Gen 7 Gfx)
Graphics APIsDirectX 11, OpenCL 1.2, OpenGL 3.2
Independent Displays2
Display Interface1x LVDS (18/24-bit single channel), 1x DDI (DP, HDMI, DVI)
I/o interfaces
Ethernet1 port 10/100/1000 Mbps with Wake-on-LAN, PXE Boot ROM with Intel i210IT
USB8x USB 2.0, 1x USB 3.0
Serial2x Serial TX/RX
Digital I/O4 channels IN, 4 channels OUT
AudioHD link interface to baseboard for Codec
SMBusYes
Hardware MonitoringYes
LPC Interface1x LPC interface
Storage
SATA2x SATA-300
SSDN/A
Expansion
PCIe4x PCIe x1 devices (3x1 when internal LAN is connected)
Power
Power InputDC 4.75V-20V or ATX 4.75V-20V/+5VSB
BatteryN/A
Physical
Form FactorCOM Express Type 10 Mini Module
Size84x55mm
Board Thickness2.0mm
Environmental
Operating Temperature-40°C to +85°C
Operating Humidity10%-95% relative humidity, non-condensing
