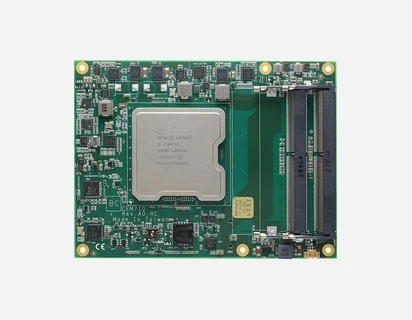

CEM710
COM Express Type 7 Basic Module with Intel® Xeon® D-1700 Series Processor
Features
- Intel® Xeon® D-1700 series processor (Ice Lake D)
- 2 DDR4-2400 SO-DIMM for up to 64 GB memory
- 1 PCIe x16 Gen3 (PEG), 1 PCIe x8 Gen3, and 6 PCIe x1 Gen3
- 2 SATA Gen3
- 4 USB 3.0 and 4 USB 2.0
- 4 10GBase-KR
- Supports TPM 2.0
Cpu
Intel® xeon® d-1712tr (4 x 2.0 ghz, 10mb cache, 50g eth, 40w)
Intel® xeon® d-1715ter (4 x 2.4 ghz, 10mb cache, 50g eth, 50w)
Intel® xeon® d-1732te (8 x 1.9 ghz, 15mb cache, 50g eth, 52w)
Intel® xeon® d-1735tr (8 x 2.2 ghz, 15mb cache, 50g eth, 59w)
Intel® xeon® d-1746ter (10 x 2.0 ghz, 15mb cache, 100g eth, 67w)
Chipset
Soc integrated
System memory
2 x 260-pin ddr4-2400 so-dimm, up to 64gb with ecc support
Bios
Ami
Serial
2 x tx/rx
Usb
4 x usb 3.0
4 x usb 2.0
Ethernet
1 x 10/100/1000/2500 mbps with intel® i226, configured through come pcie port 7
4 x 10gbase-kr with intel® 10g external phy
Display
N/a
Gpio
4-ch in & 4-ch out
Audio
N/a
Storage
2 x sata gen3
Expansion
1 x pcie x16 gen3 (peg)
1 x pcie x8 gen3
6 x pcie x1 gen3
Others
Tpm 2.0
1 x i2c
1 x lpc
1 x spi
Battery
N/a
Power input
ATX+12V, +5VSB
AT+12V
Watchdog timer
65536 levels, 0 to 65535 sec.
Hardware monitoring
Yes
Operating temperature
Standard0°C to +60°C (+32°F to +140°F)
Extended-40°C to +85°C (-40°F to +185°F) with system thermal solution
Vibration
3.5 grms
Relative humidity
10% to 95% relative humidity, non-condensing
Dimensions
125 x 95 mm
Board thickness
2.0 mm
Certifications
Ce
