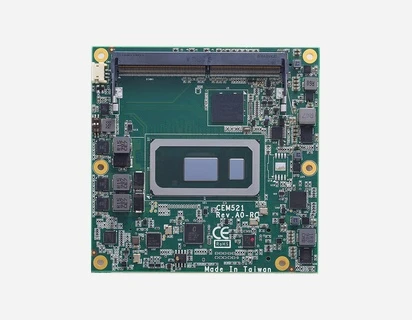

CEM521
COM Express Type 6 Compact Module with 8th Gen Intel® Core™ & Celeron® Processor
Features
- 8th gen Intel® Core™ i7/i5/i3 and Celeron® processors (Whiskey Lake-U)
- 2 dual-channel DDR4-2400 SO-DIMM for up to 64GB
- Max. up to 8 lanes of PCI Express
- 3 SATA Gen3
- 4 USB 3.0 and 8 USB 2.0
- Supports eMMC for up to 64G (optional)
- TPM 2.0 supported
- AMS.AXView intelligent remote management software
Computer
CPUIntel® Core™ i7-8665UE/i5-8365UE/i3-8145UE processor (Whiskey Lake-U) & Intel® Celeron® 4305UE
System Memory2x Dual-channel DDR4-2400 SO-DIMM slot, up to 64GB
ChipsetSoC integrated
BIOSAMI uEFI (Legacy free)
Watchdog Timer65536 levels, 0 to 65535 sec.
Storage
SSDeMMC for up to 64G (optional)
Expansion
Expansion Interface8x PCI Express Gen3 (max. 5 PCIe Devices with LAN)
Display
Graphics EngineIntel® gen 9 Graphics Engine, Supports Gfx-DX12.0, OCL2.0, OGL4.3
Display Interface1x LVDS 18/24-bit single/dual channel (optional eDP1.4: 4096x2304@60Hz), 1x VGA 1920x1200@60Hz (default), 1x DDI (DisplayPort1.2: 4096x2304@60Hz/HDMI1.4: 4096x2160@30/24Hz)
I/o interfaces
SATA3x SATA Gen3
Ethernet1x 10/100/1000Mbps Ethernet with Intel® i219-LM; supports Wake-on-LAN, PXE Boot ROM
AudioHD link interface to baseboard for Codec
USB4x USB 3.0, 8x USB 2.0
Serial1x LPC, 1x SPI, 2x TX/RX
TPMTPM 2.0
SMBusYes
I2C1x I2C
GPIO4-CH in & 4-CH out (SDIO optional)
Smart BatteryYes
Hardware MonitoringYes
Power
BatteryLithium, Yes
Power InputATX: +12V, +5V SB, AT: +12V
Physical
Dimensions95x95mm
Board Thickness2.0mm
Environmental
Operating TemperatureIndustrial: -40℃ to +85℃ (-40F to +185F) with system thermal solution, Standard: -20℃ to +70℃ (-4F to +158F)
Humidity10%-95% relative humidity, non-condensing
Vibration Endurance3.5Grms
Computer
CPUIntel® Core™ i7-8665UE/i5-8365UE/i3-8145UE processor (Whiskey Lake-U) & Intel® Celeron® 4305UE
System Memory2x Dual-channel DDR4-2400 SO-DIMM slot, up to 64GB
ChipsetSoC integrated
BIOSAMI uEFI (Legacy free)
Watchdog Timer65536 levels, 0 to 65535 sec.
Storage
SSDeMMC for up to 64G (optional)
Expansion
Expansion Interface8x PCI Express Gen3 (max. 5 PCIe Devices with LAN)
Display
Graphics EngineIntel® gen 9 Graphics Engine, Supports Gfx-DX12.0, OCL2.0, OGL4.3
Display Interface1x LVDS 18/24-bit single/dual channel (optional eDP1.4: 4096x2304@60Hz), 1x VGA 1920x1200@60Hz (default), 1x DDI (DisplayPort1.2: 4096x2304@60Hz/HDMI1.4: 4096x2160@30/24Hz)
I/o interfaces
SATA3x SATA Gen3
Ethernet1x 10/100/1000Mbps Ethernet with Intel® i219-LM; supports Wake-on-LAN, PXE Boot ROM
AudioHD link interface to baseboard for Codec
USB4x USB 3.0, 8x USB 2.0
Serial1x LPC, 1x SPI, 2x TX/RX
TPMTPM 2.0
SMBusYes
I2C1x I2C
GPIO4-CH in & 4-CH out (SDIO optional)
Smart BatteryYes
Hardware MonitoringYes
Power
BatteryLithium, Yes
Power InputATX: +12V, +5V SB, AT: +12V
Physical
Dimensions95x95mm
Board Thickness2.0mm
Environmental
Operating TemperatureIndustrial: -40℃ to +85℃ (-40F to +185F) with system thermal solution, Standard: -20℃ to +70℃ (-4F to +158F)
Humidity10%-95% relative humidity, non-condensing
Vibration Endurance3.5Grms
