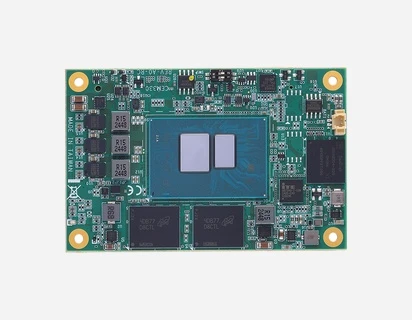

CEM330
COM Express Type 10 Mini Module with Intel Atom® X7000 or Intel® Core™ i3/N-series Processors
Features
- Intel Atom® X7000 or Intel® Core™ i3/N-series processors (Amston Lake/Alder Lake-N)
- Up to 16GB LPDDR5 memory onboard
- Supports up to 4 PCI Express lanes
- Up to 2 SATA 3.0
- 2 USB 3.2 and 8 USB 2.0
- eMMC and TPM 2.0 onboard
- Intel® UHD Graphics
- 1x LVDS; 18/24-bit single channel (optional eDP1.4b)
- 1x DDI (with up to 4K supported)
- 1x 10/100/1000/2500Mbps Ethernet with Intel® I226LM, supporting Wake-on-LAN
- HD link interface to baseboard for Codec
- 1x LPC, 1x SPI, 2x TX/RX serial
- TPM 2.0
- SMBus interface
- 1x I2C
- 4-CH in/4-CH out GPIO
- Smart Battery support
- Hardware Monitoring
- Watchdog Timer (65536 levels, 0 to 65535 sec)
- AMI uEFI BIOS (Legacy free)
Computer
ProcessorIntel Atom® X7000 or Intel® Core™ i3 N-series processors
System MemoryLPDDR5-4800, up to 16GB
ChipsetSoC integrated
BIOSAMI uEFI (Legacy free)
Watchdog Timer65536 levels, 0 to 65535 sec
Storage
Storage32GB/64GB eMMC onboard
SATA2x SATA 3.0 (optional)
Display
GPUIntel® UHD Graphics
Display Interface1x LVDS; 18/24-bit single channel (optional eDP1.4b), 1x DDI (with up to 4K supported)
I/o interfaces
USB2x USB 3.2 Gen 2, 8x USB 2.0
Ethernet1x 10/100/1000/2500Mbps Ethernet with Intel® I226LM, supporting Wake-on-LAN
Serial1x LPC, 1x SPI, 2x TX/RX
AudioHD link interface to baseboard for Codec
GPIO4-CH in/4-CH out
I2C1x I2C
SMBusYes
TPMTPM 2.0
Smart BatteryYes
Hardware MonitoringYes
Expansion
PCI ExpressUp to 4x PCIe x1
Power
Power InputATX: +12V, +5VSB; AT: +12V; Extended voltage: +4.75V to +20V
BatteryLithium
Physical
Dimensions84x55mm
Board Thickness2.0mm
Form FactorCOM Express Type 10 Mini Module
Environmental
Operating Temperature - Extended-40°C to +85°C (-40°F to +185°F) with system thermal solution
Operating Temperature - Standard-20°C to +70°C (-4°F to +158°F) with standard thermal solution
Relative Humidity10% to 95% non-condensing
Vibration Endurance3.5Grms
Computer
ProcessorIntel Atom® X7000 or Intel® Core™ i3 N-series processors
System MemoryLPDDR5-4800, up to 16GB
ChipsetSoC integrated
BIOSAMI uEFI (Legacy free)
Watchdog Timer65536 levels, 0 to 65535 sec
Storage
Storage32GB/64GB eMMC onboard
SATA2x SATA 3.0 (optional)
Display
GPUIntel® UHD Graphics
Display Interface1x LVDS; 18/24-bit single channel (optional eDP1.4b), 1x DDI (with up to 4K supported)
I/o interfaces
USB2x USB 3.2 Gen 2, 8x USB 2.0
Ethernet1x 10/100/1000/2500Mbps Ethernet with Intel® I226LM, supporting Wake-on-LAN
Serial1x LPC, 1x SPI, 2x TX/RX
AudioHD link interface to baseboard for Codec
GPIO4-CH in/4-CH out
I2C1x I2C
SMBusYes
TPMTPM 2.0
Smart BatteryYes
Hardware MonitoringYes
Expansion
PCI ExpressUp to 4x PCIe x1
Power
Power InputATX: +12V, +5VSB; AT: +12V; Extended voltage: +4.75V to +20V
BatteryLithium
Physical
Dimensions84x55mm
Board Thickness2.0mm
Form FactorCOM Express Type 10 Mini Module
Environmental
Operating Temperature - Extended-40°C to +85°C (-40°F to +185°F) with system thermal solution
Operating Temperature - Standard-20°C to +70°C (-4°F to +158°F) with standard thermal solution
Relative Humidity10% to 95% non-condensing
Vibration Endurance3.5Grms
