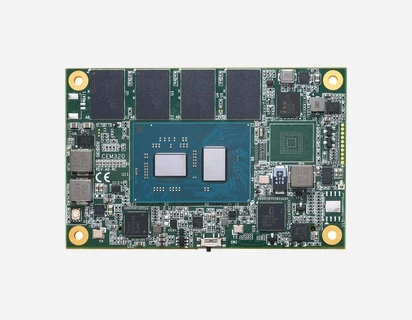

CEM320
COM Express Type 10 Mini Module with Intel Atom® x6000E/RE Series or Intel® Celeron® N/J Series
Features
- Intel Atom® x6000E/RE series or Intel® Celeron® N/J processor (Elkhart Lake)
- 8GB/16GB LPDDR4 onboard memory, up to 3200 MT/s
- Up to 4 PCIe Gen 3 lanes
- 2 SATA 3.0
- 2 USB 3.2 Gen 2 and 8 USB 2.0
- eMMC 5.1 and TPM 2.0 onboard
- COM Express Type 10 Mini Module form factor
- Intel® Integrated UHD Graphics with OpenGL 4.5, DirectX 12, OpenCL 1.2, and Vulkan 1.1
- 1x DDI and 1x LVDS display interfaces
- 1x 10/100/1000/2500 Mbps Ethernet with Intel® I226LM
- Wake-on-LAN and PXE Boot ROM support
- Hardware monitoring and Smart Battery support
- TPM 2.0 security
- AMI UEFI BIOS (Legacy Free)
Computer
CPU OptionsIntel Atom® x6413E (1.5GHz), Intel Atom® x6414RE (1.5GHz), Intel® Celeron® N6210 (1.2GHz), Intel® Celeron® J6412 (2.0GHz)
System Memory8GB/16GB LPDDR4 onboard, up to 3200 MT/s
ChipsetSoC integrated
BIOSAMI UEFI BIOS (Legacy Free)
Watchdog Timer65536 levels, 0 to 65535 seconds
Display
GraphicsIntel® Integrated UHD Graphics
Graphics API SupportOpenGL 4.5, DirectX 12, OpenCL 1.2, Vulkan 1.1
Display Interface1x DDI, 1x LVDS (eDP optional)
Storage
eMMC32GB/64GB onboard, eMMC 5.1
Expansion
PCIeUp to 4x PCIe x1 Gen 3 lanes
SATA2x SATA 3.0
I/o interfaces
USB2x USB 3.2 Gen 2, 8x USB 2.0
Ethernet1x 10/100/1000/2500 Mbps with Intel® I226LM, Wake-on-LAN, PXE Boot ROM
Serial1x LPC, 1x SPI, 2x TX/RX
AudioHD link interface to baseboard for audio codec
TPMTPM 2.0
SMBusYes
I2C1x I2C
GPIO4-CH in & 4-CH out
Smart BatteryYes
Hardware MonitoringYes
Power
Power InputATX: +12V, +5VSB; AT: +12V; Wide range input: +4.75V to +20V
BatteryLithium battery onboard
Physical
Dimensions84 x 55 mm
Board Thickness2.0 mm
Form FactorCOM Express Type 10 Mini Module
Environmental
Operating Temperature Industrial-40°C to +85°C (-40°F to +185°F) with thermal solution
Operating Temperature Standard-20°C to +70°C (-4°F to +158°F)
Relative Humidity10% to 95%, non-condensing
Vibration Endurance3.5 Grms
Computer
CPU OptionsIntel Atom® x6413E (1.5GHz), Intel Atom® x6414RE (1.5GHz), Intel® Celeron® N6210 (1.2GHz), Intel® Celeron® J6412 (2.0GHz)
System Memory8GB/16GB LPDDR4 onboard, up to 3200 MT/s
ChipsetSoC integrated
BIOSAMI UEFI BIOS (Legacy Free)
Watchdog Timer65536 levels, 0 to 65535 seconds
Display
GraphicsIntel® Integrated UHD Graphics
Graphics API SupportOpenGL 4.5, DirectX 12, OpenCL 1.2, Vulkan 1.1
Display Interface1x DDI, 1x LVDS (eDP optional)
Storage
eMMC32GB/64GB onboard, eMMC 5.1
Expansion
PCIeUp to 4x PCIe x1 Gen 3 lanes
SATA2x SATA 3.0
I/o interfaces
USB2x USB 3.2 Gen 2, 8x USB 2.0
Ethernet1x 10/100/1000/2500 Mbps with Intel® I226LM, Wake-on-LAN, PXE Boot ROM
Serial1x LPC, 1x SPI, 2x TX/RX
AudioHD link interface to baseboard for audio codec
TPMTPM 2.0
SMBusYes
I2C1x I2C
GPIO4-CH in & 4-CH out
Smart BatteryYes
Hardware MonitoringYes
Power
Power InputATX: +12V, +5VSB; AT: +12V; Wide range input: +4.75V to +20V
BatteryLithium battery onboard
Physical
Dimensions84 x 55 mm
Board Thickness2.0 mm
Form FactorCOM Express Type 10 Mini Module
Environmental
Operating Temperature Industrial-40°C to +85°C (-40°F to +185°F) with thermal solution
Operating Temperature Standard-20°C to +70°C (-4°F to +158°F)
Relative Humidity10% to 95%, non-condensing
Vibration Endurance3.5 Grms
