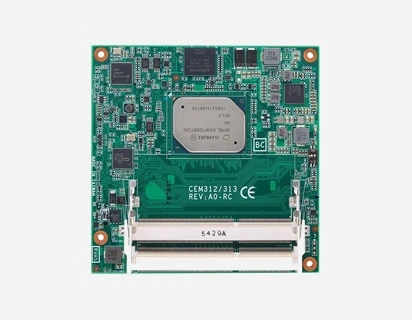

CEM312
COM Express Type 6 Compact Module with Intel® Atom® x5 and x7 Processor
Features
- Intel® Atom® x5 and x7 processors (Apollo Lake)
- 2 DDR3L-1600 SO-DIMM for up to 8GB of memory
- Max. up to 4 lanes of PCI Express
- 2 SATA-600
- 4 USB 3.0 and 8 USB 2.0
- AXView 2.0 intelligent remote management software
- TPM 1.2 supported (optional)
Computer
Processor OptionsIntel® Atom® x7-E3950, Intel® Atom® x5-E3940, Intel® Atom® x5-E3930
ChipsetIntel® Gen 9 Graphics Engine
GraphicsSupports DX12.0, OCL 2.0, OGL 4.3
Memory
RAM2 DDR3L-1600 SO-DIMM slots
Maximum MemoryUp to 8GB
Display
Display Interfaces2 x DDI (DP, HDMI, DVI); VGA optional
LVDS1 x LVDS; 18/24-bit dual channel (eDP option)
I/o interfaces
Ethernet1 x 10/100/1000 Mbps with Intel® i210-IT; Wake-on-LAN, PXE Boot ROM supported
USB4 x USB 3.0, 8 x USB 2.0
Serial1 x LPC, 1 x SPI, 2 x TX/RX
AudioHD link interface to baseboard for Codec
TPMTPM 1.2 (optional)
SMBusYes
I2C1 x I2C
GPIO4-CH in & 4-CH out
Smart BatteryYes
Hardware MonitoringYes
Storage
SATA2 x SATA-600
Expansion
PCI ExpressMax. up to 4 lanes
Form factor
TypeCOM Express Type 6 Compact Module
