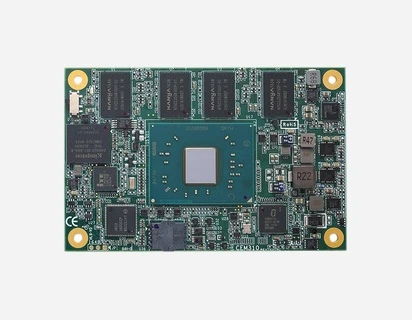

CEM311
COM Express Type 10 Mini Module with Intel® Pentium® Processor N4200 & Celeron® Processor N3350
Features
- Intel® Pentium® processor N4200 & Celeron® processor N3350 (Apollo Lake)
- Onboard 4GB DDR3L memory
- Max. up to 4 lanes of PCI Express
- 2 SATA-600
- 2 USB 3.0 and 8 USB 2.0
Cpu
Intel® pentium® processor n4200 & celeron® processor n3350 onboard
Chipset
Soc integrated
System memory
Onboard 4gb ddr3l memory
Bios
Ami
Serial
2 x serial tx/rx
Usb
2 x usb 3.0
8 x usb 2.0
Ethernet
1 x 10/100/1000 mbps (intel® i211at)
Display
1 x ddi (dp, hdmi, dvi)
1 x lvds (edp optional)
Gpio
4-in & 4-out
Audio
Hd link interface to baseboard for codec
Storage
Emmc 5.0 upt o 64gb (optional)
2 x sata-600
Expansion
4 x pcie x1 devices (3 x1 while internal lan is connected)
Others
1 x lpc interface
1 x spi interface
1 x i2c
Battery
N/a
Power input
ATX+12V,+5VSB
AT+12V
Wide range input+4.75V to +20V
Watchdog timer
65536 levels, 0 - 65535 sec.
Hardware monitoring
Yes
Operating temperature
20ºc to +70ºc (-4ºf to +158ºf)
Relative humidity
10% to 95% relative humidity, non-condensing
Vibration
3.5 grms
Dimensions
84 x 55 mm
Board thickness
2.0 mm
Certifications
Ce
