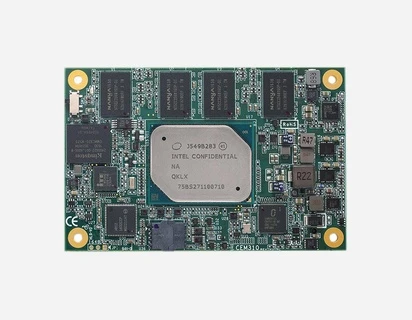

CEM310
COM Express Type 10 Mini Module with Intel® Atom® x5 and x7 Processor
Features
- Intel Atom® x5 and x7 processors (Apollo Lake)
- 4GB DDR3L / 8GB LPDDR4 memory onboard
- Max. up to 4 lanes of PCI Express
- 2 SATA-600
- 2 USB 3.0 and 8 USB 2.0
- COM Express Type 10 Mini Module connector
- Onboard DDR3L/LPDDR4 memory chip
- Onboard eMMC (optional)
- Intel® Gen 9 Graphics Engine
- 1x DDI (DisplayPort, HDMI, DVI)
- 1x LVDS; 18/24-bit single channel
- 1 x 10/100/1000 Mbps Ethernet with Intel® i210-IT
- Wake-on-LAN and PXE Boot ROM support
- Hardware Monitoring
- SMBus support
- Smart Battery support
- GPIO: 4-CH in & 4-CH out
- Serial interfaces: LPC, SPI, 2x TX/RX
- I2C interface
Computer
CPUIntel Atom® x7-E3950 (2.0GHz), Intel Atom® x5-E3940 (1.8GHz), Intel Atom® x5-E3930 (1.8GHz)
System Memory4GB DDR3L memory onboard or 8GB LPDDR4 memory onboard
ChipsetSoC integrated
BIOSAMI UEFI BIOS (Legacy Free)
GraphicsIntel® Gen 9 Graphics Engine
Graphics SupportGfx-DX12.0, OCL2.0, OGL 4.3
Watchdog Timer65536 levels, 0 to 65535 sec.
I/o interfaces
Ethernet1 x 10/100/1000 Mbps Ethernet with Intel® i210-IT
USB2 x USB 3.0
USB8 x USB 2.0
Serial1 x LPC
Serial1 x SPI
Serial2 x TX/RX
I2C1 x I2C
GPIO4-CH in & 4-CH out
AudioHD link interface to baseboard for Codec
SMBusYes
Smart BatteryYes
Hardware MonitoringYes
Expansion
PCI Express4x PCIe x1 (3x1 while internal LAN is connected)
Power
Power InputATX: +12V, +5VSB
Power InputAT: +12V
Power InputWide range input: +4.75V to +20V
BatteryN/A
Physical
Dimensions84 x 55 mm
Board Thickness2.0 mm
Form FactorCOM Express Type 10 Mini Module
Environmental
Operating Temperature (Industrial)-40°C to +85°C (-40°F to +185°F) with system thermal solution
Operating Temperature (Standard)-20°C to +70°C (-4°F to +158°F)
Humidity10%-95% relative humidity, non-condensing
Vibration Endurance3.5 Grms
Computer
CPUIntel Atom® x7-E3950 (2.0GHz), Intel Atom® x5-E3940 (1.8GHz), Intel Atom® x5-E3930 (1.8GHz)
System Memory4GB DDR3L memory onboard or 8GB LPDDR4 memory onboard
ChipsetSoC integrated
BIOSAMI UEFI BIOS (Legacy Free)
GraphicsIntel® Gen 9 Graphics Engine
Graphics SupportGfx-DX12.0, OCL2.0, OGL 4.3
Watchdog Timer65536 levels, 0 to 65535 sec.
I/o interfaces
Ethernet1 x 10/100/1000 Mbps Ethernet with Intel® i210-IT
USB2 x USB 3.0
USB8 x USB 2.0
Serial1 x LPC
Serial1 x SPI
Serial2 x TX/RX
I2C1 x I2C
GPIO4-CH in & 4-CH out
AudioHD link interface to baseboard for Codec
SMBusYes
Smart BatteryYes
Hardware MonitoringYes
Expansion
PCI Express4x PCIe x1 (3x1 while internal LAN is connected)
Power
Power InputATX: +12V, +5VSB
Power InputAT: +12V
Power InputWide range input: +4.75V to +20V
BatteryN/A
Physical
Dimensions84 x 55 mm
Board Thickness2.0 mm
Form FactorCOM Express Type 10 Mini Module
Environmental
Operating Temperature (Industrial)-40°C to +85°C (-40°F to +185°F) with system thermal solution
Operating Temperature (Standard)-20°C to +70°C (-4°F to +158°F)
Humidity10%-95% relative humidity, non-condensing
Vibration Endurance3.5 Grms
