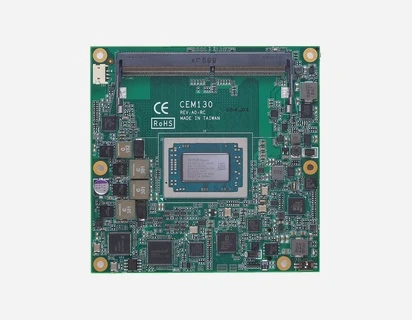

CEM130
COM Express Type 6 Compact Module with AMD Ryzen™ Embedded V1000 Processor
Features
- AMD Ryzen™ Embedded V1000 processors
- 2 DDR-2400/3200 SO-DIMM for up to 64GB of memory
- Max. up to 7 lanes of PCI Express
- 2 SATA-600
- 3 USB 3.0 and 8 USB 2.0
- TPM 2.0 supported
- Wide voltage input from +8V to +20V
- Radeon™ RX Vega Graphics with up to 11 compute units
- H.265 (10-bit) decode & (8-bit) encode, VP9 decode
- 1x10/100/1000Mbps Ethernet with Intel® i210
- Wake-on-LAN and PXE Boot ROM support
- Hardware monitoring
- Smart Battery support
- COM Express Type 6 Compact Module form factor
Computer
CPUAMD Ryzen™ Embedded V1000 series (V1202B/2.3GHz 12-25W, V1605B/2.0GHz 12-25W, V1756B/3.25GHz 35-54W, V1807B/3.35GHz 35-54W)
System Memory2x DDR4-2400/3200 SO-DIMM, up to 64GB dual channel, non-ECC/ECC memory
ChipsetSoC integrated
BIOSAMI uEFI (Legacy free)
Watchdog Timer65536 levels, 0 to 65535 sec
Display
GraphicsRadeon™ RX Vega Graphics with up to 11 compute units
Video DecodeH.265 (10-bit) decode & (8-bit) encode, VP9 decode
Display Interface1x VGA 1920x1200@60Hz, 1x LVDS dual-channel 18/24-bit or eDP 1.3 (optional), 2x DDI (HDMI 1.4, DVI, DisplayPort 1.2)
I/o interfaces
SATA2x SATA-600
Ethernet1x 10/100/1000Mbps Ethernet with Intel® i210, Wake-on-LAN, PXE Boot ROM
USB3x USB 3.0, 8x USB 2.0
Serial1x LPC, 1x SPI, 2x TX/RX
AudioHD link interface to baseboard for Codec
TPMTPM 2.0
SMBusYes
I2C1x I2C
GPIO4-CH in & 4-CH out
Storage
Internal StorageN/A
Expansion
PCI Express7x PCIe x1 via PCIe bridge
Power
Power InputATX +12V, +5V SB; Battery +12V; Wide range input +8V to +20V
Physical
Dimensions95x95mm
Board Thickness2.0mm
Form FactorCOM Express Type 6 Compact Module
Environmental
Operating Temperature-20°C to +60°C
Humidity10%-95% relative humidity, non-condensing
Certifications
Smart BatteryYes
