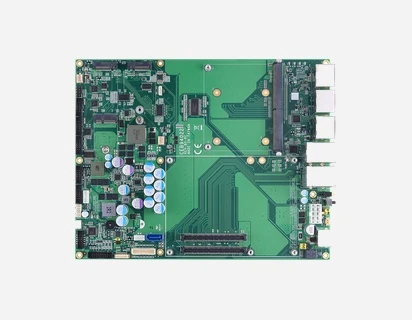

CEB94022
COM Express Type 6 Application Board with MXM Slot
Features
- MXM type A/B supported
- SATA 3.0
- LVDS, VGA, HDMI, and DisplayPort
- 4 USB 2.0 and 2 USB 3.0
- 3 x M.2 slot (Key E/B/M)
- 3 RS-232/422/485 and 1 RS-232
- Hardware Monitoring
- SMBus
- GPIO support
Display
ChipsetOn module
Display Interface1x LVDS 18/24-bit single channel
VGA1x VGA
HDMI1x HDMI (from COM express module)
DisplayPort1x DisplayPort (from COM express module), 4x DisplayPort (from MXM)
I/o interfaces
Ethernet1x 10/100/1000/2500 Mbps Ethernet with Intel I226; supports Wake-on-LAN, PXE Boot ROM; 1x 10/100/1000/2500 Mbps (by COMe model)
AudioHD audio with Line-out, MIC-in & Line-in
USB4x USB 2.0, 2x USB 3.0
Serial1x RS-232, 3x RS-232/422/485
SMBusYes
I2C1x I2C
GPIO4-CH in & 4-CH out
Storage
SATA1x SATA 3.0
M.2 Slots3x M.2 slot (Key E/B/M)
Physical
Dimensions245 x 190 mm
Board Thickness1.6 mm
Environmental
Operating Temperature-40°C to +85°C (-40°F to +185°F)
Relative Humidity10% to 95% relative humidity, non-condensing
