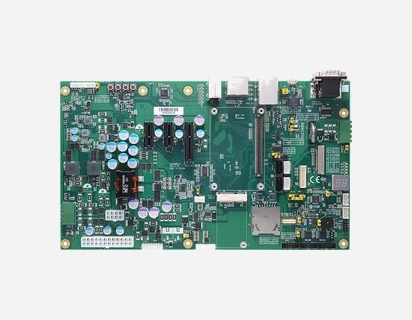

CEB94017
COM Express Type 10 Development Baseboard
Features
- COM Express type 10 baseboard for evaluation purpose
- USB 3.2 Gen 2 supported
- Supports Mini PCIe slot
- Port 80 display for debugging
- Smart battery supported
Computer
CPUCOM Express Type 10 module
System MemoryOn the module
ChipsetOn the module
BIOSOn the module
Watchdog TimerOn the module
TPMOn the module
Display
LVDS1 x LVDS; 18/24-bit single channel
eDP1 x eDP
HDMI1 x HDMI
DisplayPort1 x DisplayPort
I/o interfaces
LPC1 x LPC interface
SPI1 x SPI interface
Serial2 x Serial TX/RX
I2C1 x I2C
Ethernet1 x RJ-45 for 10/100/1000/2500 Mbps
AudioHD audio with Line-in/Line-out/MIC-in
USB2 x USB 3.2 Gen 2, 8 x USB 2.0
SMBusYes
Digital I/O4-CH in/4-CH out
SDIO1 x SD card reader (alternative with DIO 4-in/4-out)
Smart BatterySupported
Port 80 DisplayDual 7-segment port 80 display for debugging via LPC interface
Hardware MonitoringDetect CPU/system temperature, voltage, and fan speed
Storage
SSDN/A
SATA2 x SATA 3.0
Expansion
PCIe x41 x PCIe x4
PCIe x14 x PCIe x1
Mini PCIe1 x Mini PCIe (PCIe x1)
Power
Power InputAT/ATX power
BatteryLithium 3V/220mAH
Physical
Size293.4 x 171.5 mm
Board Thickness1.6 mm
Environmental
Operating Temperature-40°C to +85°C (-40°F to +185°F)
Relative Humidity10% to 95% relative humidity, non-condensing
