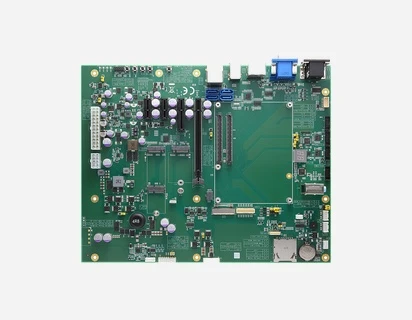

CEB94011
COM Express Type 6 Development Baseboard
Features
- COM Express type 6 baseboard for evaluation purpose
- USB 3.2 Gen 2 supported
- Supports M.2 Key M, B, and E
- Port 80 display for debugging
- Smart battery supported
Computer
CPUCOM Express type 6 module
System MemoryOn the module
ChipsetOn the module
BIOSOn the module
Watchdog TimerOn the module
TPMOn the module
Display
Display Interface1x LVDS 18/24-bit dual channel, 1x eDP, 1x VGA, 1x HDMI, 2x DisplayPort
I/o interfaces
MIO1x LPC interface, 1x SPI interface, 2x Serial TX/RX, 1x I2C
SATA4x SATA 3.0 (one SATA is alternative w/M.2 key B SATA)
Ethernet1x RJ-45 for 10/100/1000/2500 Mbps
AudioHD audio with Line-in/Line-out/MIC-in
USB4x USB 3.2 Gen 2 (one USB 3.2 is alternative w/M.2 key B USB 3.2)
SMBusYes
Digital I/O4-CH in/4-CH out
Hardware MonitoringDetect CPU/system temperature, voltage, and fan speed
Port 80 DisplayDual 7-segment Port 80 display for convenient debugging via LPC interface
Storage
SSDN/A
Smart BatterySupported (Lithium 3V/220mAH)
Power
Power InputAT/ATX Power
BatteryLithium 3V/220mAH
Physical
Size243 x 305 mm
Board Thickness1.6 mm
Environmental
Operating Temperature-40°C to +85°C (-40°F to +185°F)
Relative Humidity10% to 95% relative humidity, non-condensing
