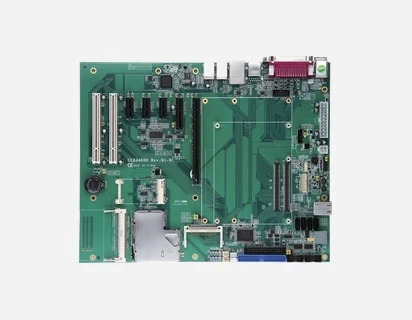

CEB94000
COM Express™ Type 2 Development Baseboard
Features
- Standard ATX form factor for development purpose
- 1 PCIe x16, 1 PCIe x4, 3 PCIe x 1 and 2 PCI slots
- 1 ExpressCard, 1 PCI Express Mini Card and 1 MiniPCI
Cpu
Com express™ type 2 basic or extended module
Chipset
On the module
System memory
On the module
Bios
On the module; optional socket on the baseboard
Serial
1 x rs-232 (com 2)
1 x rs-232 (com 1)
Usb
6 x usb 2.0
Ethernet
1 x 10/100/1000mbps
Display
1 x s-video (depending on cpu module)
1 x lvds lcd interface
1 x crt d-sub connector
Gpio
N/a
Audio
Line-in/line-out/mic-in and spif
Storage
4 x sata
Expansion
1 x pcie x16 for graphics and sdvo add2+ card
1 x pcie x4 or 3 x pcie x1
2 x 32-bit/33mhz pci
1 x expresscard
1 x pci express mini card
1 x minipci type-iii
Others
1 x ide; pata-100
1 x fdd
1 x ps/2 keyboard & mouse
1 x lpt; with spp/epp/ecp supported
1 x irda
1 x smbus
Port 80 display
Battery
Lithium 3v/196 mah
Power input
Tbd
Watchdog timer
255 levels, 1~255 sec.
Hardware monitoring
Yes
Operating temperature
0° ~ +60°c (32°f ~ 140°f)
Relative humidity
10% ~ 95% relative humidity, non-condensing
Dimensions
305 x 244 mm
Board thickness
1.6 mm
Certifications
Ce
Cpu
Com express™ type 2 basic or extended module
Chipset
On the module
System memory
On the module
Bios
On the module; optional socket on the baseboard
Serial
1 x rs-232 (com 2)
1 x rs-232 (com 1)
Usb
6 x usb 2.0
Ethernet
1 x 10/100/1000mbps
Display
1 x s-video (depending on cpu module)
1 x lvds lcd interface
1 x crt d-sub connector
Gpio
N/a
Audio
Line-in/line-out/mic-in and spif
Storage
4 x sata
Expansion
1 x pcie x16 for graphics and sdvo add2+ card
1 x pcie x4 or 3 x pcie x1
2 x 32-bit/33mhz pci
1 x expresscard
1 x pci express mini card
1 x minipci type-iii
Others
1 x ide; pata-100
1 x fdd
1 x ps/2 keyboard & mouse
1 x lpt; with spp/epp/ecp supported
1 x irda
1 x smbus
Port 80 display
Battery
Lithium 3v/196 mah
Power input
Tbd
Watchdog timer
255 levels, 1~255 sec.
Hardware monitoring
Yes
Operating temperature
0° ~ +60°c (32°f ~ 140°f)
Relative humidity
10% ~ 95% relative humidity, non-condensing
Dimensions
305 x 244 mm
Board thickness
1.6 mm
Certifications
Ce
