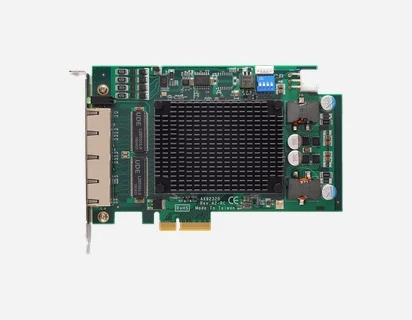

AX92320
2/4-port PCI Express GigE Frame Grabber Card
Features
- PCI Express x4 compliant
- 2 or 4 independent Gigabit PoE ports
- Supports 9.5KB jumbo frames and IEEE 1588
- Compliant with IEEE802.3at to deliver 30W at 54 VDC per port
- Up to 20/120W PoE power through PCIe 6-pin ATX power connector
- 0°C to +60°C operating temperature range
- PoE power management software
- Supports smart on/off for LAN ports
Expansion
Bus TypePCI Express x4
I/o interfaces
Ethernet Ports2 or 4 GbE LANs supported by Intel I210-AT controller
Port Connector8-pin RJ-45
Speed10/100/1000 Mbps
PoE CapabilityIEEE 802.3at compliant, up to 30W at 54 VDC per port
Jumbo Frames9.5KB supported
TimingIEEE 1588 supported
Power
Input Voltage12/24 VDC
Power from PCIe slotUp to 20W PoE power output (2.1A@+12V, 1.2A@+3.3V)
Power from ATX connectorUp to 120W PoE power output (12A@+12V or 6A@+24V, 1.2A@+3.3V from PCIe slot)
Connection6-pin ATX power connector
Overload ProtectionYes
Physical
Dimensions168 x 111 mm (W x D)
Environmental
Operating Temperature0°C to +60°C (32°F to 140°F) with air flow
Storage Temperature-20°C to +80°C (-4°C to 176°C)
Humidity10% to 95%, non-condensing
Certifications
EOS SupportWindows 7/10 (32/64-bit)
Expansion
Bus TypePCI Express x4
I/o interfaces
Ethernet Ports2 or 4 GbE LANs supported by Intel I210-AT controller
Port Connector8-pin RJ-45
Speed10/100/1000 Mbps
PoE CapabilityIEEE 802.3at compliant, up to 30W at 54 VDC per port
Jumbo Frames9.5KB supported
TimingIEEE 1588 supported
Power
Input Voltage12/24 VDC
Power from PCIe slotUp to 20W PoE power output (2.1A@+12V, 1.2A@+3.3V)
Power from ATX connectorUp to 120W PoE power output (12A@+12V or 6A@+24V, 1.2A@+3.3V from PCIe slot)
Connection6-pin ATX power connector
Overload ProtectionYes
Physical
Dimensions168 x 111 mm (W x D)
Environmental
Operating Temperature0°C to +60°C (32°F to 140°F) with air flow
Storage Temperature-20°C to +80°C (-4°C to 176°C)
Humidity10% to 95%, non-condensing
Certifications
EOS SupportWindows 7/10 (32/64-bit)
