Deliver Your I/O Data to the Cloud, Quickly and Securely

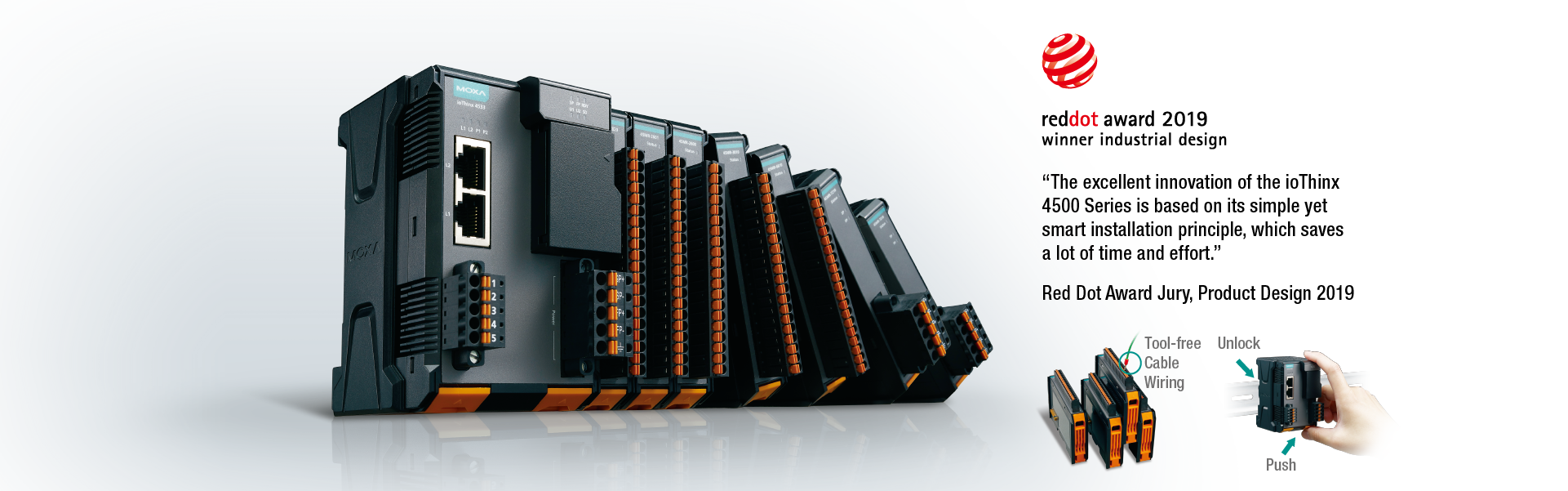

ioThinx 4500 Series IIoT controllers and I/Os

Deploy Your I/O Data to the Cloud,
Quickly and Securely

With more and more field devices being connected to the industrial IoT (Internet of Things), the need to keep all those “things” continuously connected to the Internet has put a premium on network devices that can stay connected, without needing an IT engineer to reboot the devices when they crash unexpectedly. Although data is the most important aspect of any I/O application, before the data can be used, it must be extracted from all sorts of industrial sensors and devices. This is often a cumbersome and time-consuming task, not to mention a drain on engineering resources. Moxa’s ioThinx 4500 Series products are IIoT-ready modular controllers and I/Os that feature programmable language capability, cloud connectivity, high computing power for precision control, and system-wide cybersecurity. ioThinx products are designed to help your IIoT applications deploy I/O data to the cloud, quickly and securely.

  • ioThinx 4533 Series
  • ioThinx 4510 Series

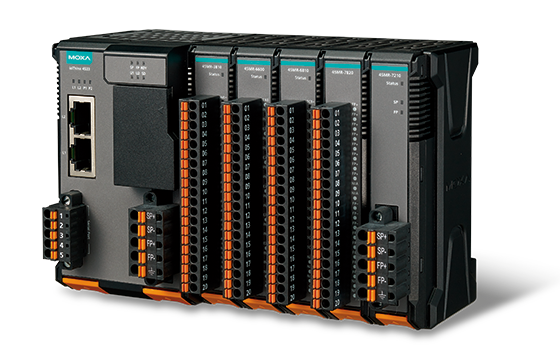

ioThinx 4533 Series IIoT Controllers

CPU NXP i.MX7D 1GHz
Power Inputs System Power: 12 to 48 VDC; Field Power: 12/24 VDC
Expansion Modules 64
Operating System Linux kernel 4.4 (CIP, PREEMPT_RT), Debian 9
Memory 512 MB DDR3
Storage (pre-installed) 8 GB eMMC
Programming Language C/C++, Python
Operating Temperature Standard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Cloud Connectivity

Save ELD-site data to the cloud with the built-in Azure/AWS/Alibaba SDK library. In addition, streamline your operations with OPC UA to SCADA capability.

Programming Language

Supports a variety of languages for different programming needs.

Precision Control

Use a real-time OS to achieve control and computing balance in one device by prioritizing APP settings.

System-wide Cybersecurity Design

Systematic Security Protection to help users mitigate security threats.

ioThinx 4510 Series IIoT Remote I/O

Power Inputs System Power: 12 to 48 VDC; Field Power: 12/24 VDC
Expansion Modules 32
IT Protocols SNMPv1/v2c/v3, RESTful API, MQTT
OT Protocols Modbus/TCP Server (slave)
Gateway Function Modbus/RTU Master to Modbus/TCP, SNMP, RESTful API, MQTT
Operating Temperature Standard Models: -20 to 60°C (-4 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

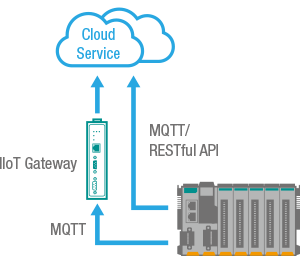

Cloud Connectivity

The ioThinx 4510 Series supports MQTT protocols that can be connected to the cloud with a reasonable number of mouse clicks. If you are using a web HMI or NMS for data supervision on a private cloud, you can make the connection using a RESTful API or SNMP, respectively.

Auto Reconfiguration

You only need to make a few simple changes, with no reconguration effort required. Simply fine tune the modules you want to change, and keep the others as is.

Cybersecurity

The ioThinx 4510 Series is compliant with IEC 62443 level 1.

Confidentiality

  • Authentication: Account management, Login Policy, Session Management

Integrity

  • Access Control: Role-based access control, IP-based whitelist

Availability

  • Interface protection: Network port protection, service disabled by default
iiot-flyer mqtt-whitepaper

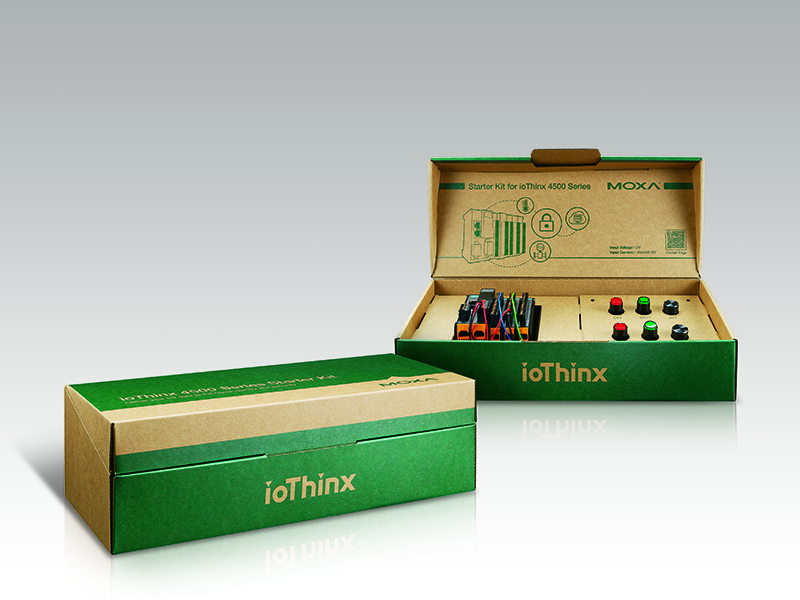

Get Started with the ioThinx IIoT Starter Kit

Easily Connects to an IT/OT Cloud

Set up MQTT, RESTful API, SNMP, and Modbus connections in a few simple steps.

Plug-and-play for Rapid Deployment

No wiring required. Everything is connected and ready to go.

Modular Design for Greater Versatility

The ioThinx 4510’s modular design, with the base and I/O boards housed in separate units, gives users the flexibility they need to set up efficient operations. The various I/O modules can be used for different purposes, including debugging, maintenance, and conducting demos.

Learn More

How to Deploy Your I/O Data to the Cloud

How to use Modbus TCP to connect to the ioThinx 4510 Series

How to use MQTT to connect to the ioThinx 4510 Series

How to use RESTful API to connect to the ioThinx 4510 Series

How to connect Modbus RTU meters and I/O devices to a SCADA system

See how Auto Reconfiguration can save deployment time
